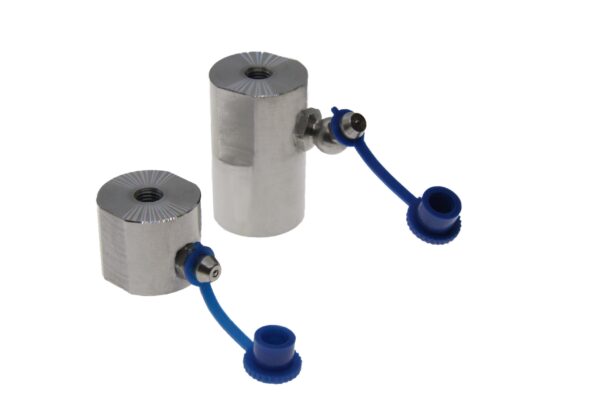

HS-AS241

Grease Adaptor Mount

HS AS241 1 scaled

Key Features

  • Accelerometers with a stud or magnet can be
    mounted directly into grease adaptor mount
  • 416 Stainless Steel material

The HS-AS241 grease adaptor mount with 1/4″-28 UNF Female Accelerometer mounting thread, fits onto accelerometers with a stud or magnet ensuring accuracy and top cleanliness, producing an airtight seal.

The 416 Stainless steel material provides high resistance to acid and corrosion. There is the option of straight or 45° for the grease adaptor fitting.

The quick and easy process of using this grease adaptor enables better precision, and reaches areas that would otherwise be difficult to access. The grease adaptor is available with lengths of 20mm and 40mm, with other options to be specified in the how to order table.

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Merkmal

Mounting Accessory
Länge

20mm/ 0.8 in, 40mm/ 1.6 in, X
Befestigungsgewinde

02 – ¼-28” UNF Male, 06 – M6 x 1mm Male, 08 – M8 x 1.25mm Male, 35 – 1/4" NPT Male, 54 – 1/4" SAE-LT Male

Datasheets

Metric DatasheetImperial Datasheet

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
