HS-630 Compact and Portable Meter

Vibration and temperature outputs

HS-630 Compact and Portable Meter

Key Features

  • Velocity & bearing condition
  • Used to monitor vibrations without installing equipment
  • Rechargeable battery used with mains or in-car charger
  • Sensor/cable fault indicator
  • Display hold function
  • Choice of metric or imperial measurement







How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

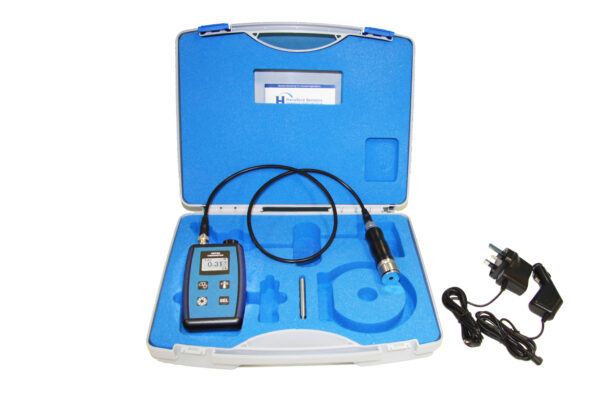

Compact Design, Portable, Vibration Meter Kit
Inputs

100 mV/g constant current accelerometer other inputs on request
Operating Temperature Range

(Accel) -20 to 90°C/ -4 to 194°F, (Meter) Operating … -10 to 50°C/ 14 to 122°F, (Meter) Storage … -20 to 60°C/ -4 to 140°F
Case Material

Plastic
Dimensions

115 x 70 x 25 mm/ 4.5 x 2.8 x 1 in
Weight

Accelerometer (incl cable) – 200 gms/ 8in, Meter – 160 gms/ 5.6 oz.
Accessories

80cm Cable with BNC & TNC Connectors (AC-095), Carry Case (HS-AA034), Hand-Held Probe (HS-6201005501), In-Car Battery Charger (HS-AA032), Magnetic Mount (¼-28” UNF Male), Mains Battery Charger (HS-AA033), Replacement Battery (HS-AA035), Stainless Steel Vibration Spike 75mm (HS-AS054-075)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS 620/HS-630 User Guide

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
