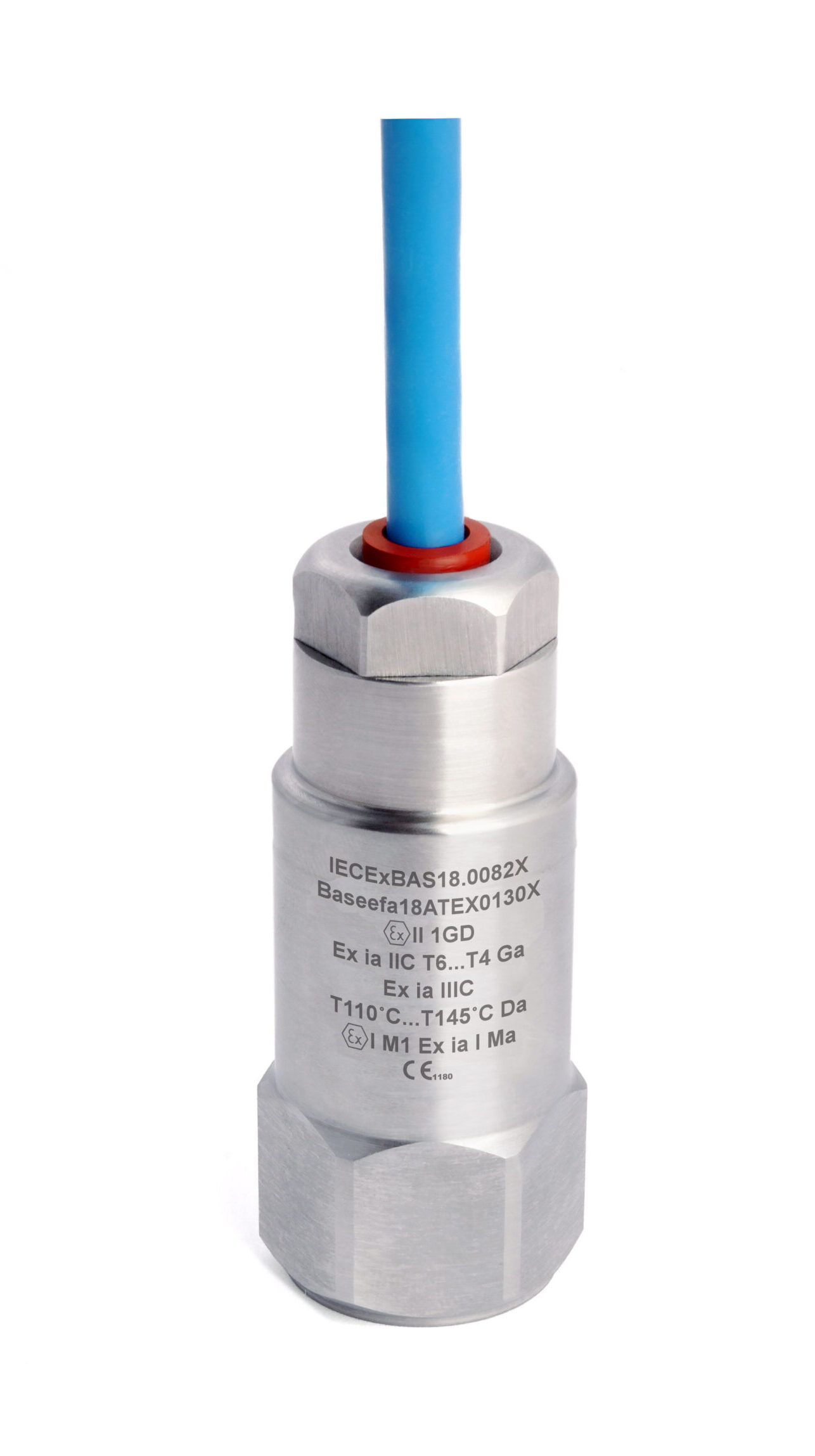

HS-150IT – Top Exit – Integral PUR Cable Intrinsically Safe Accelerometer with Temp Output

100mV/g AC acceleration and 10mV/C temperature output via PUR Cable

Key Features

  • Intrinsically Safe with European, USA, Indian and Australian approvals
  • Temperature output
  • For use with data collector
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Mounted Base Resonance

26 – 34 Khz

Sensitivity

±10%, 10mV/g, 30mV/g, 50mV/g, 100mV/g, 250mV/g, 500mV/g, Nominal 80Hz at 22°C / 72°F

Operating Temperature Range

Ex ia I Ma (-55°C ≤ Ta ≤ +103°C) (Mining), Ex ia IIC T4 Ga (-55°C ≤ Ta ≤ +103°C) (Gas, Ex ia IIC T6 Ga (-55°C ≤ Ta ≤ +57°C) (Gas), Ex ia IIIB T110°C Da (-55°C ≤ Ta ≤ +57°C) (Dust), Ex ia IIIB T145°C Da (-55°C ≤ Ta ≤ +92°C) (Dust), Ex ia IIIC T135°C Da (-55°C ≤ Ta ≤ +70°C) (Dust)

Sealing

IP68

EMC

EN61326-1:2013

Case Material

Stainless Steel

Sensing Element/Construction

PZT/Shear

Weight

106gms / 3.7 oz (nominal) body only

Screened Cable Assembly

PUR – length to be specified with order

Top/Side Entry

Top Entry

Design

Premium

Feature

Intrinsically Safe

Connector/Cable Type

PUR Cable

Output

Single Output

Axis

Single (Standard)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Safety-Barriers-GuideStuds-fitting-instructionsSystem DrawingTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

3D CAD ModelQuality PolicyEnvironmental PolicyMTTFByhon MTTF
