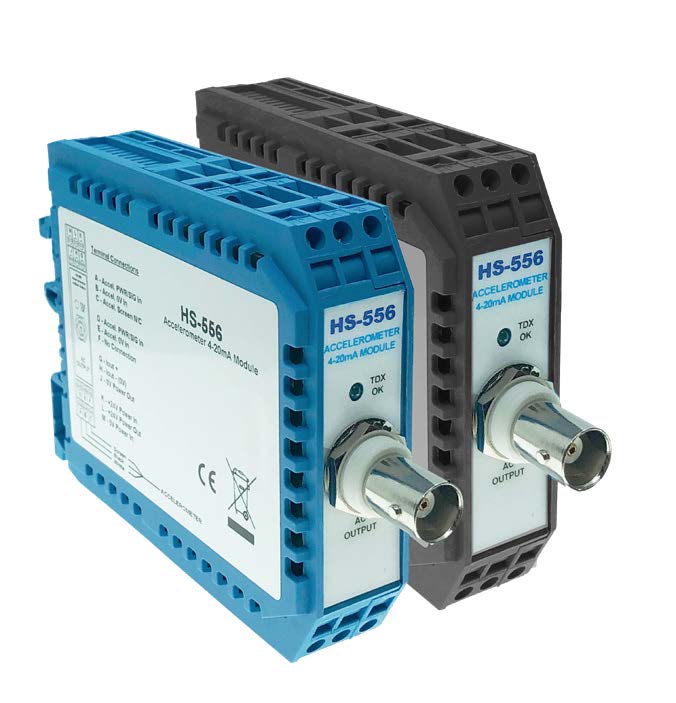

HS-556 Vibration Module
4-20mA output
Key Features
- Industrial Accelerometer input
- 4-20mA Velocity or ‘g’ output
- TDX OK Function
- Low pass filter
- Din Rail Mounted
- Buffered Accelerometer output (for data collection) via BNC
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
Feature | Single Channel |
---|---|
Inputs | 100 mV/g constant current accelerometer (other sensitivities available) |
Acceleration Ranges | To be specified |
Case Material | Plastic |
Mounting | Din Rail TS35 (Top Hat) |
Dimensions | 120 x 75 x 23 mm / 4.7 x 3 x 1 mm (H x D x W) |
Conductor Size | 0.5 to 4.0mm/ 0.02 to 0.2in |
Weight | 60gms / 2.1 oz. (nom) |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
HS-556 DrawingHS-556 ManualAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
