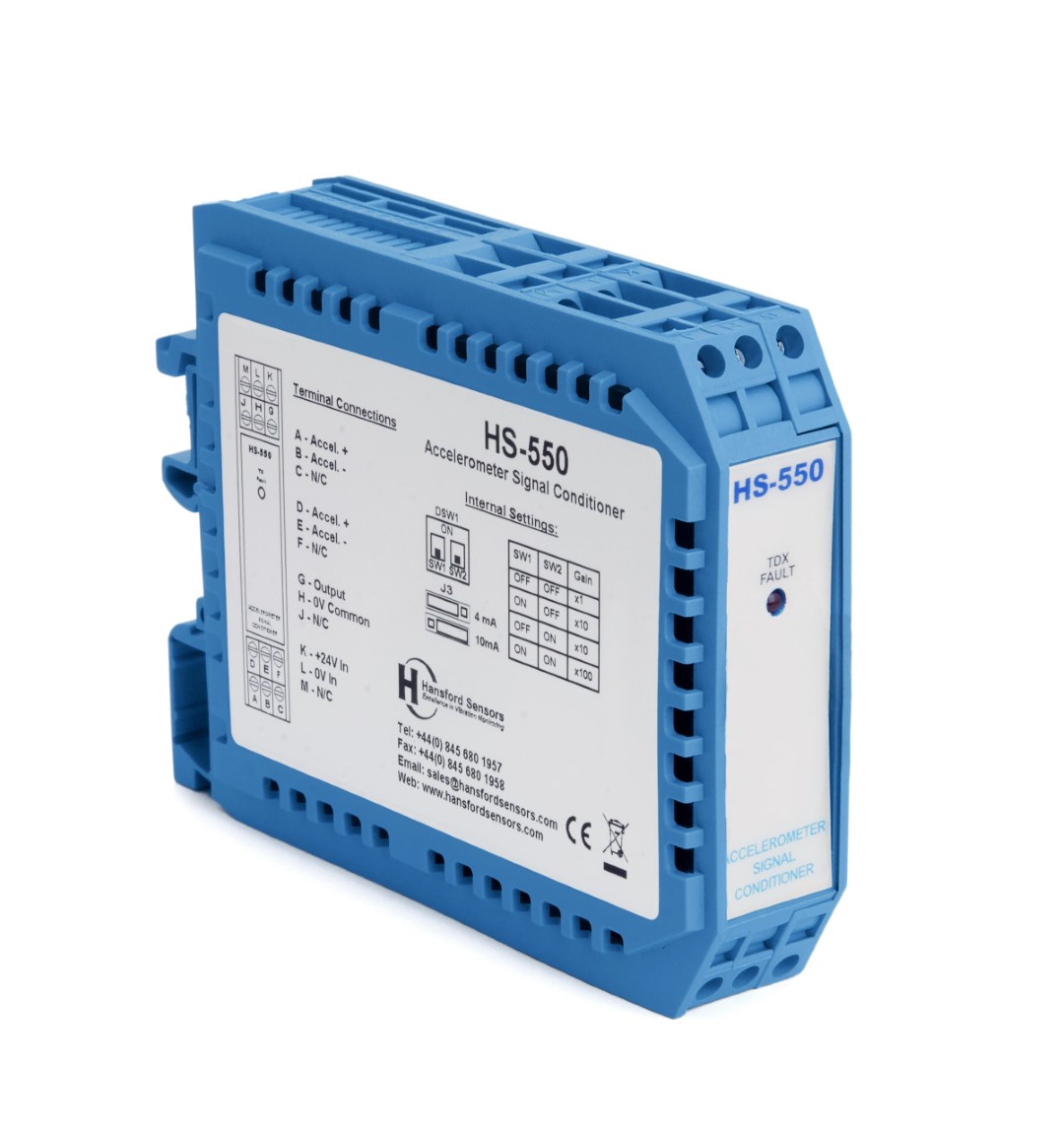

HS-550 Vibration Module

Acceleration Power Supply and Signal Amplifier

Key Features

  • Provides power for constant current accelerometers
  • 3 Gain Settings
  • TDX OK Indicator
  • DIN Rail Mounted



How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Accelerometer Power Supply

Case Material

Plastic

Weight

76 gms/ 2.7 oz. (nom)

Operating Temperature Range

0 to 55 ºC/ 32 to 131ºF

EMC

EN61326-1:2013

Mounting

Din Rail TS35 (Top Hat)

Dimensions

100 x 75 x 24 mm/ 4 x 3 x 1 in (HxDxW)

Conductor Size

0.5 to 4.0mm/ 0.02 to 0.2in

Installation Category (IEC664)

II

Equipment Class (IEC536)

III

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-550 Manual

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
