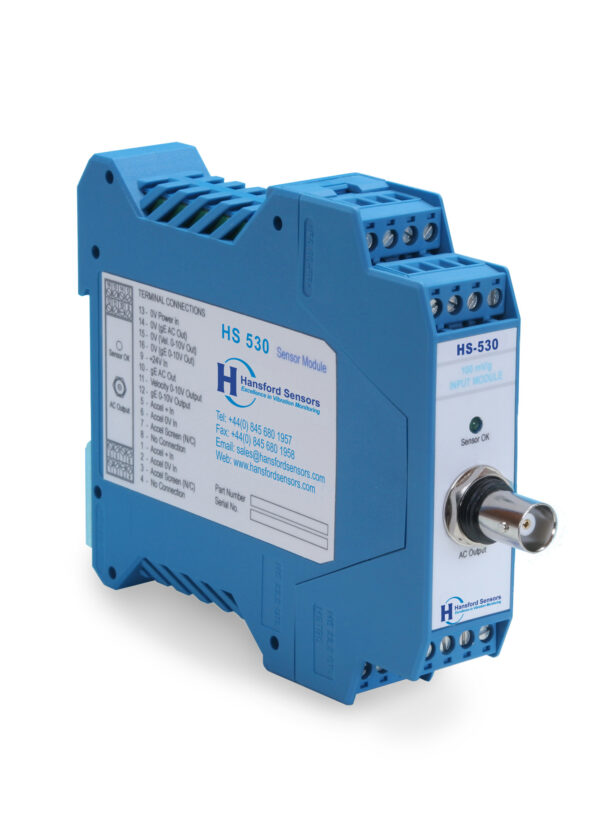

HS-530 Vibration Module
Four Outputs
Key Features
- Enveloped ‘g’ Output
- RMS Velocity Output
- 0-10V Outputs for PLCs
- Buffered Acceleration Output (for Data Collection)
- TDX OK Function
- DIN Rail Mounted
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Feature | Single Channel |
|---|---|
| Inputs | 100 mV/g constant current accelerometer (other sensitivities available) |
| Frequency Range | 10 Hz to 10 kHz (-3dB) |
| Output | Four Outputs, Output 1 : 2-pole Butterworth, Output 1: Input Filters 500 Hz to 10 kHz (-3dB), Output 2: 2-pole Butterworth, Output 2: Post-Envelope Filter 10 Hz to 1 kHz (-3dB) |
| Velocity Filters | 10 Hz to 1 kHz (-3dB) 2-pole Butterworth |
| Case Material | Plastic |
| Mounting | Din Rail TS35 (Top Hat) |
| Dimensions | 134 x 99 x 22.5 mm / 5.3 x 3.9 x 0.9 in (H x D x W) including BNC |
| Conductor Size | 0.5 to 4.0mm/ 0.02 to 0.2in |
| Weight | 140gms/ 4.9 oz (nominal) body only |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
HS-530 ManualHS-530 & HS-531 DrawingAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
