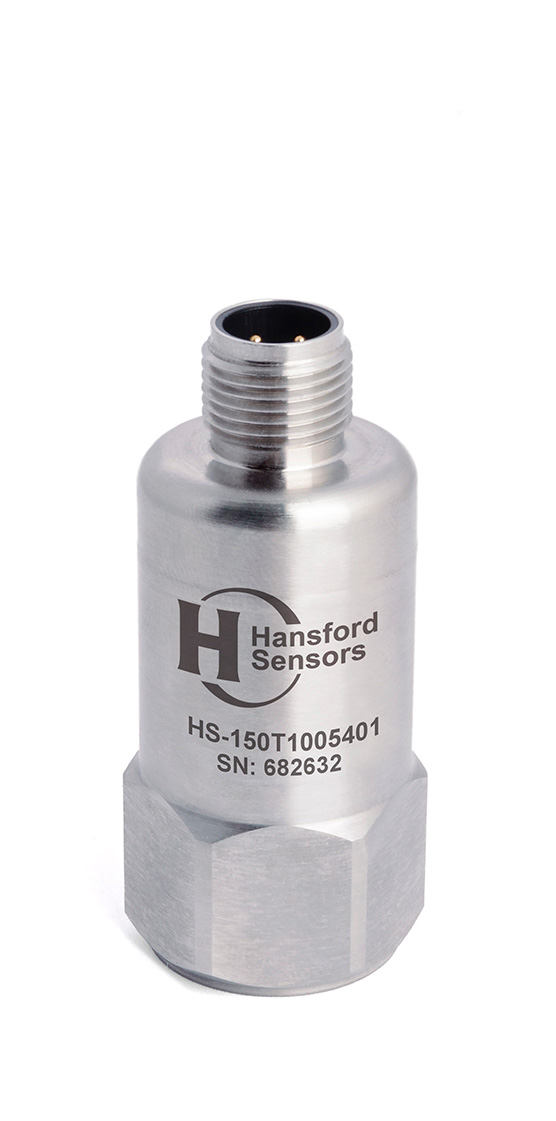

HS-150T – Top Exit – 4 Pin M12 Accelerometer With Temp Output
100mV/g AC acceleration and 10mV/C temperature output via M12 Connector
Key Features
- Temperature output
- Premium design
- Customisable features
- Shear Crystal Construction
Industries
Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical
Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Operating Temperature Range | -55 to 150°C, -67 to 300°F |
|---|---|
| Sealing | IP67 |
| EMC | EN61326-1:2013 |
| Case Material | Stainless Steel |
| Sensing Element/Construction | PZT/Shear |
| Weight | 140gms/ 4.9 oz (nominal) body only |
| Screened Cable Assembly | HS-AC010 – straight, HS-AC011 – right angle |
| Top/Side Entry | Top Entry |
| Design | Premium |
| Output | Dual Output |
| Connector/Cable Type | M12 Connector |
| Axis | Single (Standard) |
Datasheets
Metric DatasheetImperial DatasheetTypical Set-upAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
