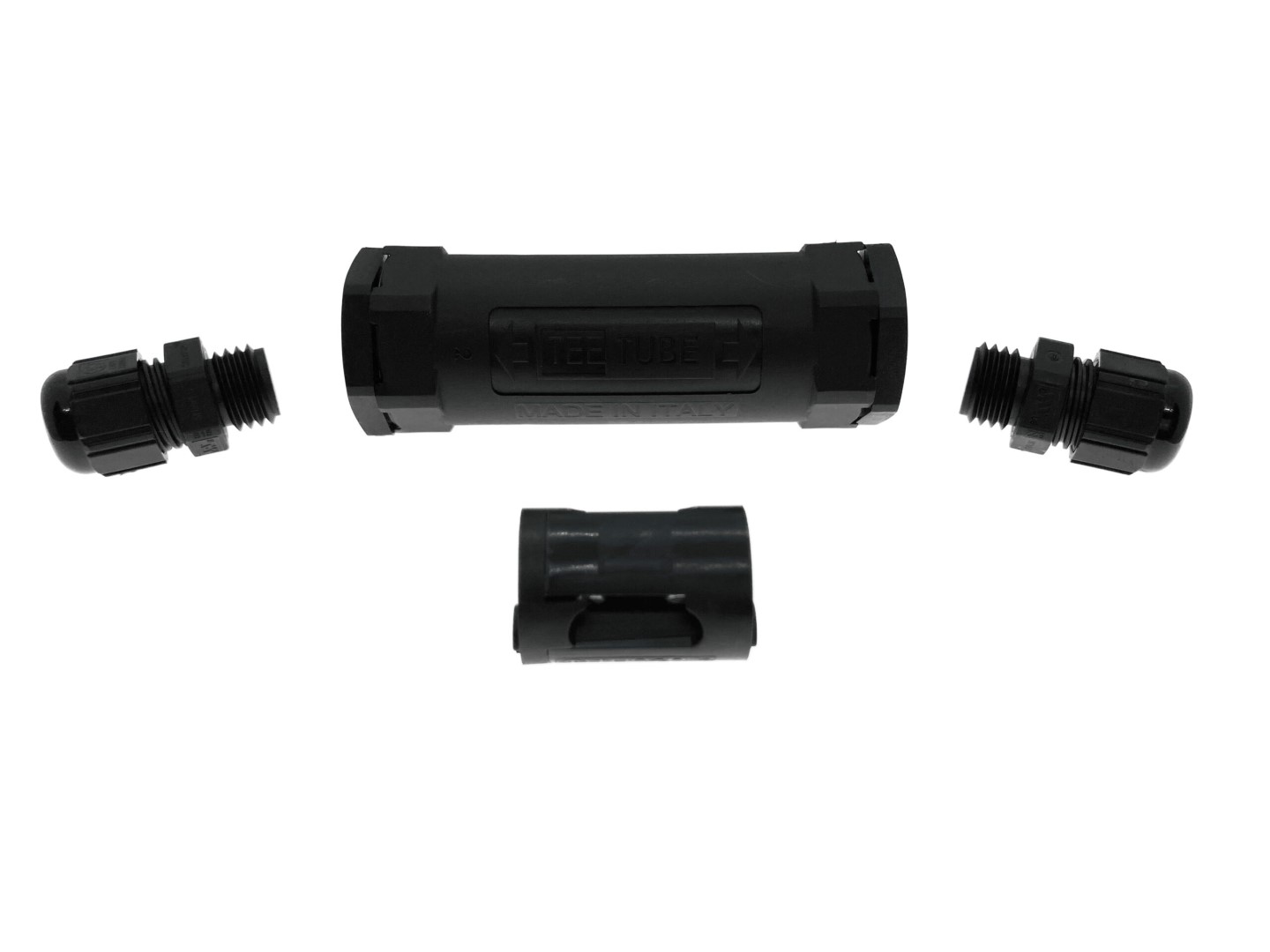

HS-AA006 – Inline Single Way Cable Joiner

HS AA006 scaled

Key Features

We reserve the right to alter the specification of this product without prior notice





How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Feature

Junction Enclosure
Number of Poles

3
Material

PA66 / TPE
Sealing

IP68
Operating Temperature Range

-40 to +125ºC/ -40 to +257ºF
Minimum Cable Diameter

5mm/ 0.2 inches
Maximum Cable Diameter

13 mm/ 0.5 inches
Maximum Current

32A

Datasheets

Metric DatasheetImperial Datasheet

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
