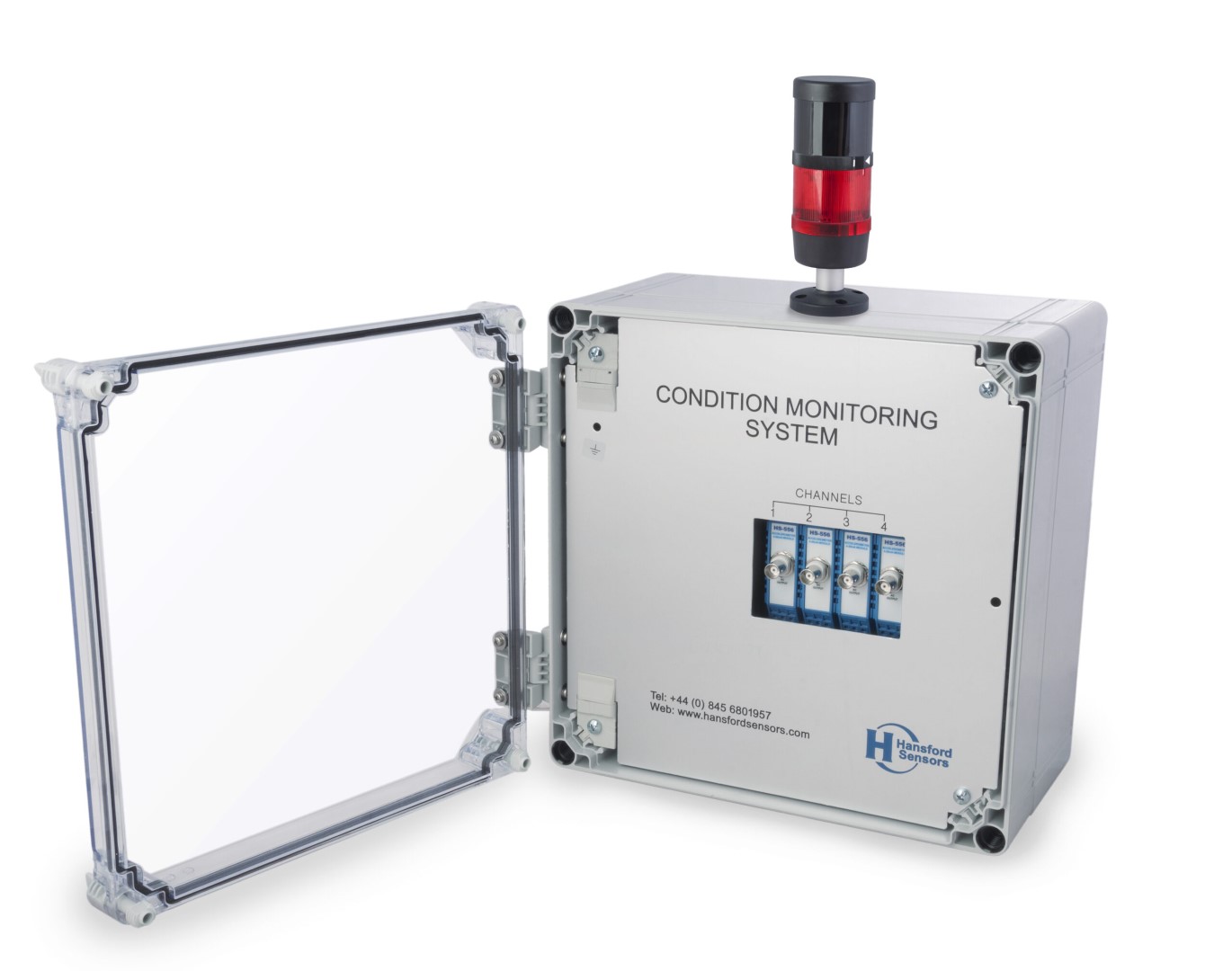

HS-580 Module Enclosure
Polycarbonate
Key Features
- Isolated Mains Power Supply
- For use with all HS-500 Series
- Short Circuit Protected
- Safety to UL1310 Class II
Extra Options: See Accessories Selector
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Feature | Industrial Enclosure |
|---|---|
| Case Material | Polycarbonate |
| Mounting | Din Rail TS35 (Top Hat) |
| Dimensions | see: ‘How To Order’ table |
| Conductor Size | 0.5 to 4.0mm/ 0.02 to 0.2in |
| Weight | 260gms / 9.1 oz. (nominal) |
| Operating Temperature Range | -22 to 55°C/ 32 to 131°F |
| Sealing | (excluding fans), IP66 |
| EMC | EN61326-1:2013 |
| Installation Category (IEC664) | II |
| Equipment Class (IEC536) | III |
| Accessories | Custom Options available, HS-590 – Flashing Beacon & Siren Module, HS-591 – Flashing Beacon, HS-592 – Siren Module |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
HS-580-001 DrawingHS-580-002 DrawingHS-580-003 DrawingAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
