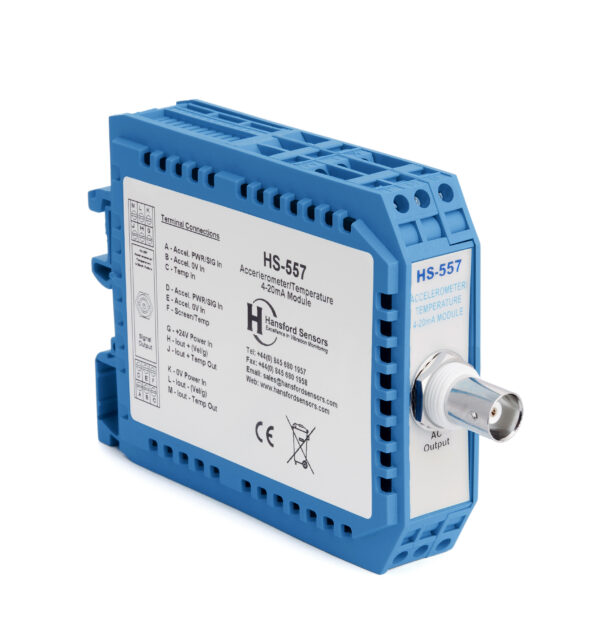

HS-557 Vibration Module
Dual output 4-20mA output
Key Features
- Industrial Accelerometer input
- 4-20mA Velocity or ‘g’ output
- Low pass filter
- Din Rail Mounted
- Buffered Accelerometer output (for data collection) via BNC and screw terminals
- Temperature Input
- 4-20mA Temperature Output
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Inputs | Input 1: Temperature Sensor PT100 or 10 mV/°C |
|---|---|
| Acceleration Ranges | To be specified |
| Case Material | Plastic |
| Mounting | Din Rail TS35 (Top Hat) |
| Dimensions | 120 x 75 x 23 mm / 4.7 x 3 x 1 mm (H x D x W) |
| Conductor Size | 0.5 to 4.0mm/ 0.02 to 0.2in |
| Weight | 80gms/ 2.8 oz (nom) |
| Output | Dual Output |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
HS-556 DrawingHS-557 ManualAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
