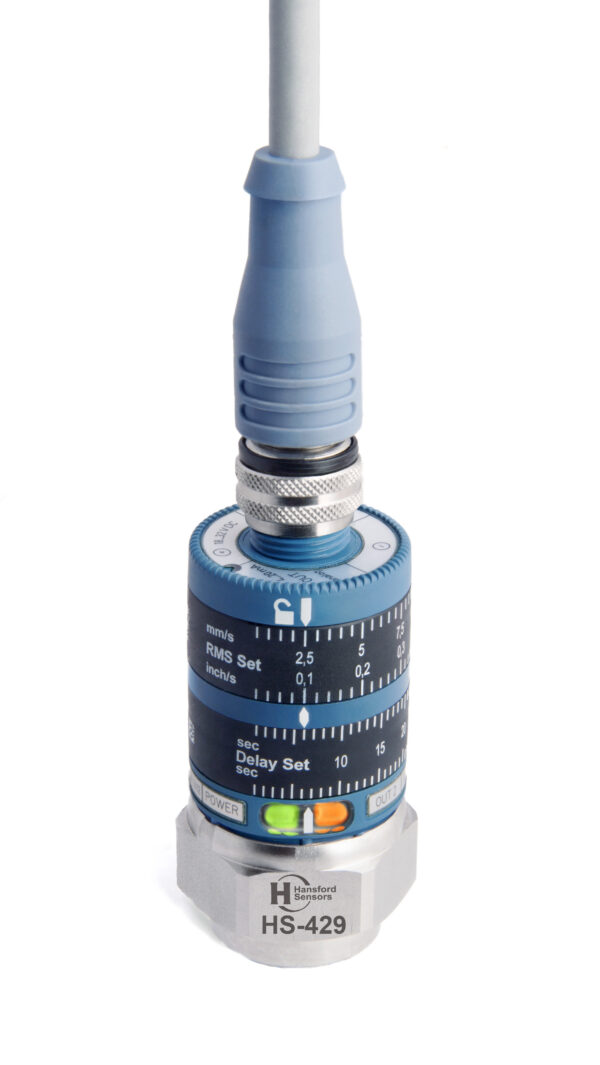

HS-429 Vibration Trip

4-20mA velocity and switch output via M12 Connector

Key Features

  • Compact vibration switch
  • Retransmit 4-20mA signal
  • False trigger delay
  • Overload protected

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Velocity

±10%, 0-25 mm/sec [0-1 IPS], 0-50 mm/sec [0-2 IPS]

Velocity Range

025 – 0-25 mm/sec [0-1 IPS], 050 – 0-50 mm/sec [0-2 IPS]

Sensitivity

±10%, Nominal 80Hz at 22°C / 72°F

Case Material

Stainless Steel 316L/Plastic

Weight

116gms / 4.1 oz. (nominal)

Screened Cable Assembly

HS-AC010 – straight, HS-AC011 – right angle

Mounting Thread

08 – M8 x 1.25mm Male

Operating Temperature Range

-25 to 80ºC / -13 to 176°F

Sealing

IP67

EMC

EN61326-1:2013

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-429 Manual

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
