HS-420I/M – Top Exit – Integral FR Cable Intrinsically Safe Accelerometer

4-20mA velocity output via Flame Retardant Cable

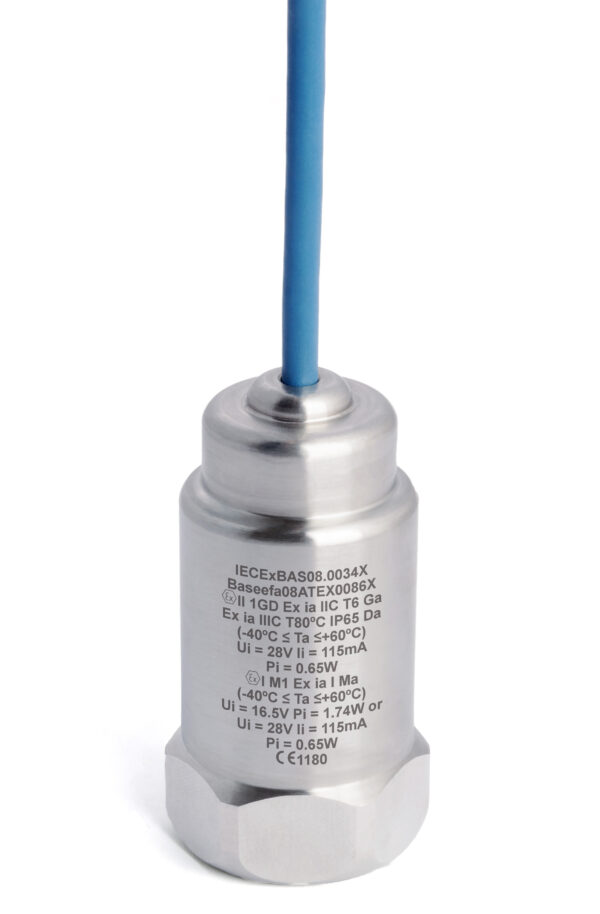

HS 420I0200801 large scaled

Key Features

  • Intrinsically Safe with European, USA, Australian, South African, and Indian approvals
  • Approved SIL 2 and SIL 3
  • For use with PLC/DCS systems
  • Low smoke, halogen free cable
  • Compression Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment



HS HS HS HS HS HS HS HS HS HS

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Sealing

IP65
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Compression
Weight

150gms/ 5.2 oz (nominal)
Top/Side Entry

Top Entry
Feature

Intrinsically Safe
Connector/Cable Type

Flame Retardant Cable
Output

4-20mA Velocity
Axis

Single (Standard)

Product documentation guides

Set up with Barrier and Trip ModuleHS-420I Max Cable Length GuideHS-420I Safety Guide Rev 2Integral Display FUW HS-422ISafety-Barriers-GuideStuds-fitting-instructions

Datasheets

Metric DatasheetImperial Datasheet

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
