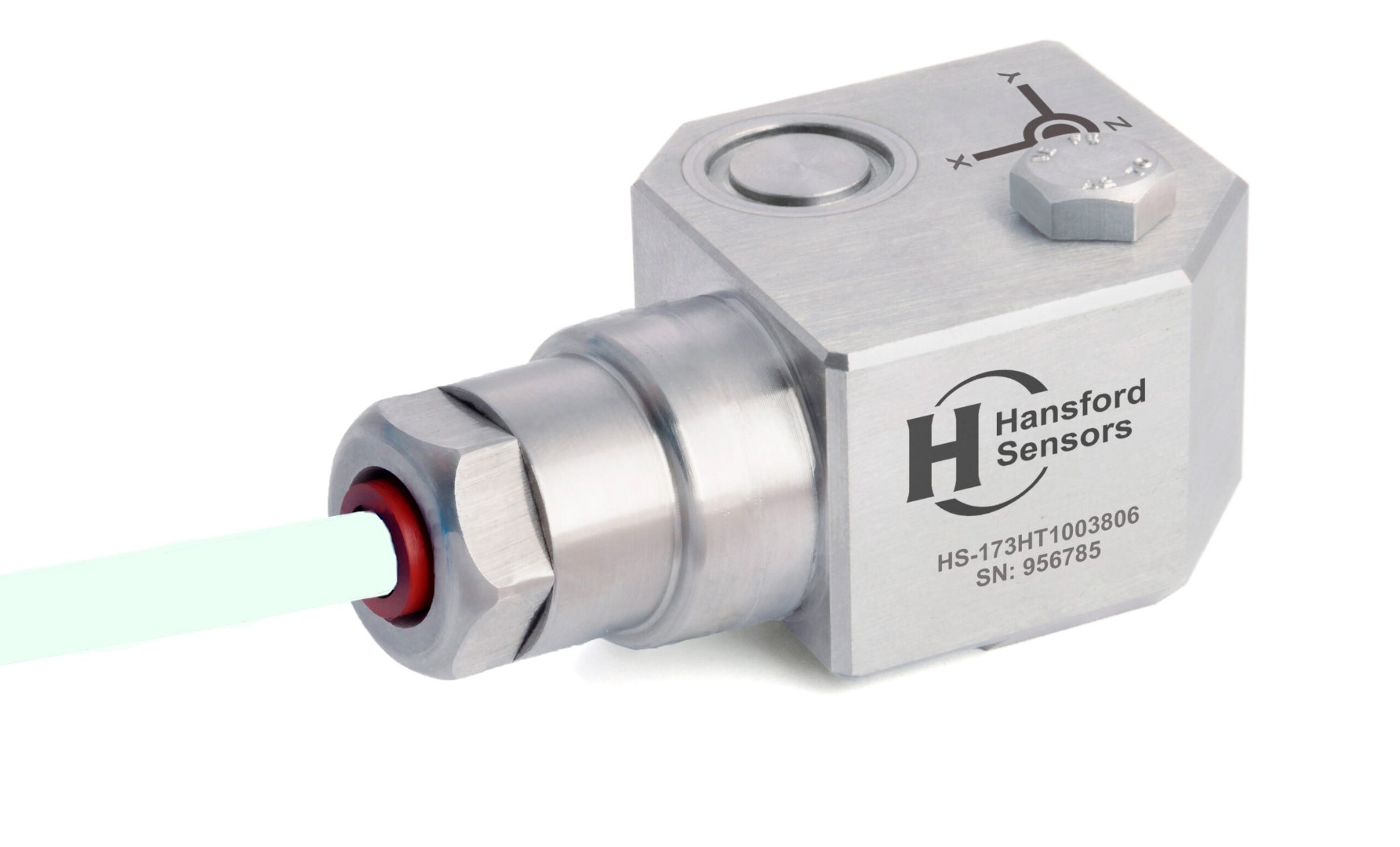

HS-173HT – Side Exit – Integral PTFE Cable Triaxial Accelerometer With Temp Output

Three 100mV/g AC acceleration Outputs and 10mV/C Temperature Output via 5 Core PTFE Cable

HS 173HT1003806 scaled

Key Features

  • High Temperature
  • Output via 3 axes
  • For use with data collector
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Operating Temperature Range

-55 to 150°C, -67 to 300°F
Sealing

IP68
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Shear
Weight

235gms / 8.3 oz. (nominal) – Stainless Steel
Top/Side Entry

Side Entry
Design

Premium
Feature

High Temperature
Connector/Cable Type

5 Core PTFE Cable
Output

Single Output
Axis

Three (Triaxial)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Studs-fitting-instructionsTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
