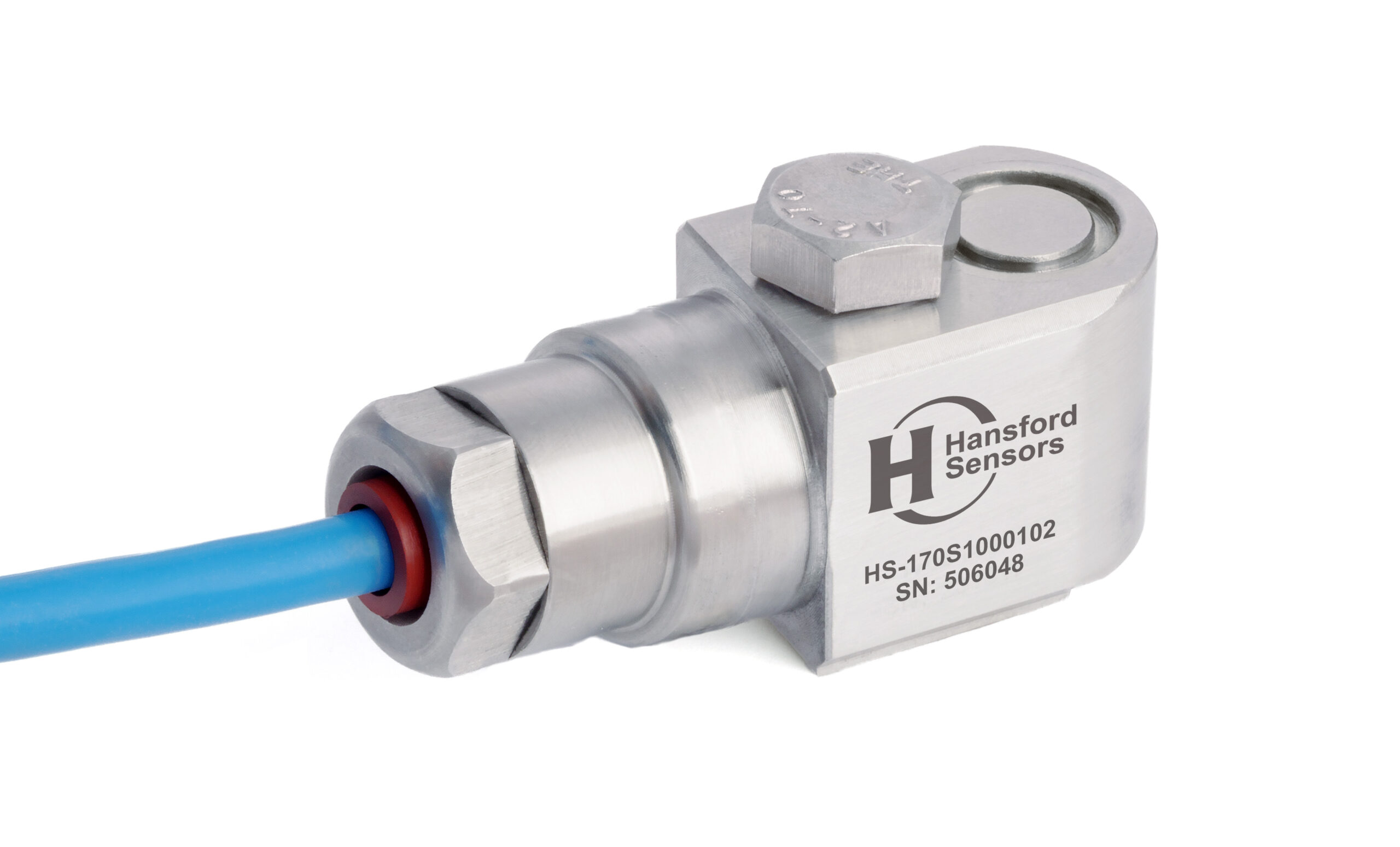

HS-170S – Side Exit – Compact Integral PUR Cable Accelerometer

100mV/g AC acceleration output via PUR Cable

HS 170S1000102 large

Key Features

  • Compact and Premium design
  • Waterproof
  • Resistant to oil
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Operating Temperature Range

-30 to 90°C, -22 to 194°F
Sealing

IP68
EMC

EN61326-1:2013
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Shear
Weight

135gms/ 4.7 oz (nominal) body only
Top/Side Entry

Side Entry
Design

Premium
Feature

Compact Design
Connector/Cable Type

PUR Cable
Output

Single Output
Axis

Single (Standard)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

HS-170-ManualInstallationTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

3D CAD ModelQuality PolicyEnvironmental PolicyMTTFByhon MTTF
There are no recommended accessories at this time.
