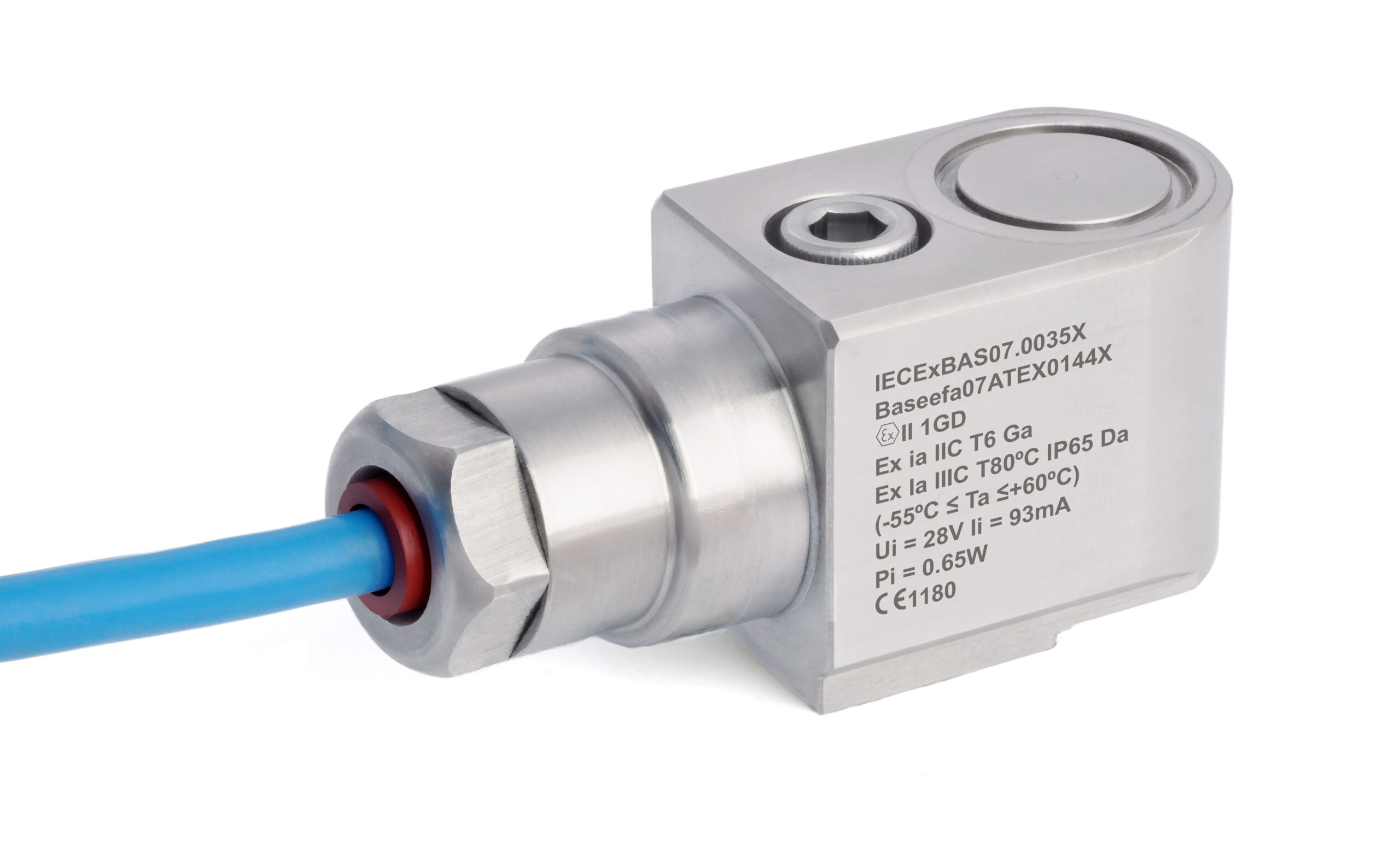

HS-100IS – Side Exit – Integral PUR Cable Intrinsically Safe Accelerometer
100mV/g AC acceleration output via PUR Cable
Key Features
- Intrinsically Safe with European, . USA, South African, Indian and Australian approvals
- Side entry for easy access
- Compression Crystal Construction
Industries
Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical
Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Sealing | IP68 |
|---|---|
| EMC | EN61326-1:2013 |
| Case Material | Stainless Steel |
| Sensing Element/Construction | PZT/Compression |
| Weight | 185gms/ 6.5 oz (nominal) body only |
| Feature | Intrinsically Safe |
| Top/Side Entry | Side Entry |
| Design | Standard |
| Connector/Cable Type | PUR Cable |
| Output | Single Output |
| Axis | Single (Standard) |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
Hazardous Area Typical Set UpHS-100I-User-GuideHS-100I Max Cable Length GuideSafety-Barriers-GuideStuds-fitting-instructionsTypical Set-upAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
