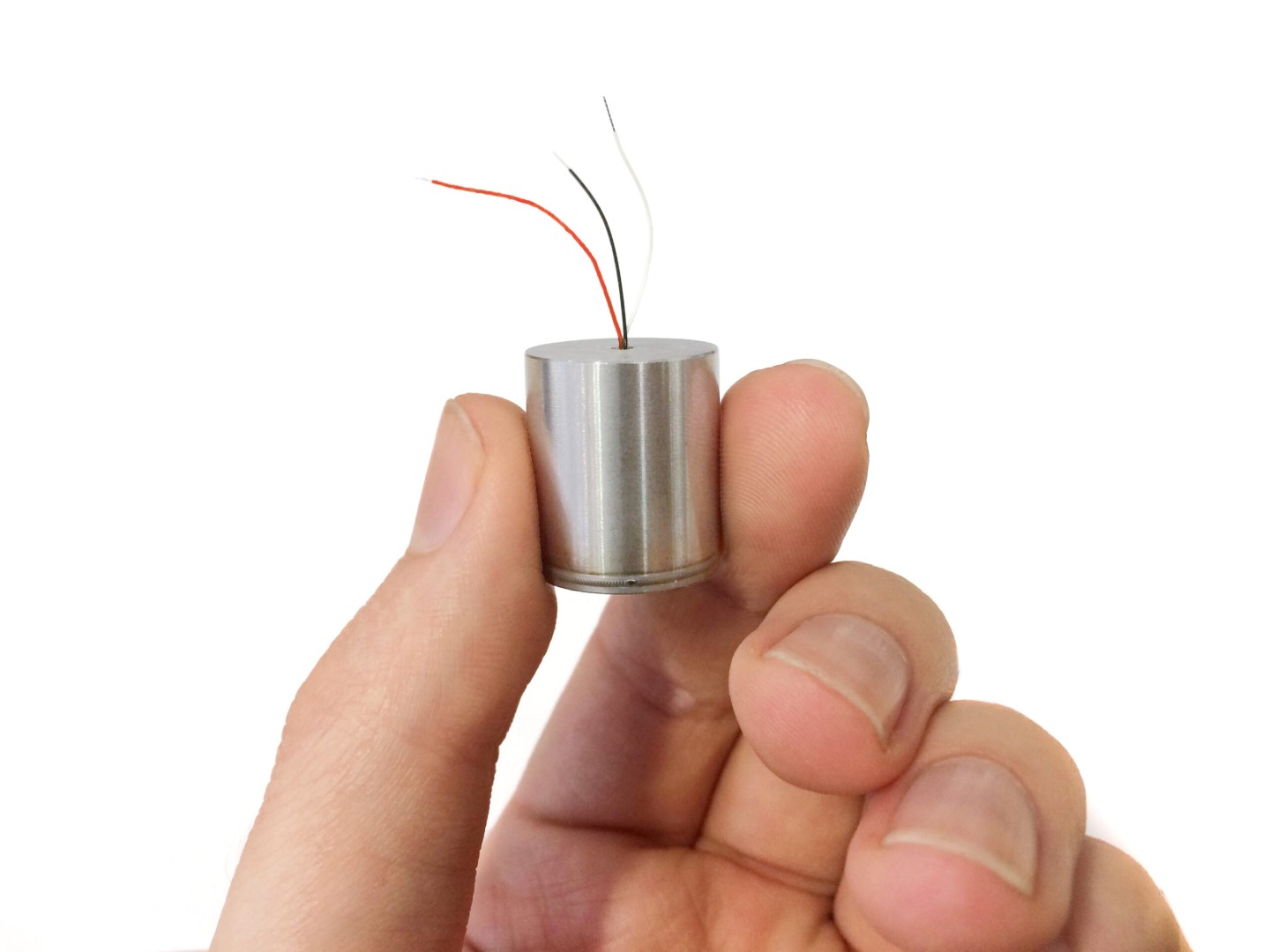

HS-004 – Low Power Accelerometer Capsule

100mV/g AC acceleration output

Key Features

  • OEM Capsule
  • Low voltage
  • Ultra low power consumption
  • Shear Crystal Construction

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Operating Temperature Range

-40 to 120ºC/ -40 to 248°F

Sealing

IP55

EMC

EN61326-1:2013

Case Material

Stainless Steel

Sensing Element/Construction

PZT/Shear

Weight

18gms/ 0.6 oz. (nominal)

Feature

OEM Capsule

Datasheets

Metric DatasheetImperial DatasheetTypical Set-up

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

Technical Documents

Quality PolicyEnvironmental PolicyMTTFByhon MTTF
