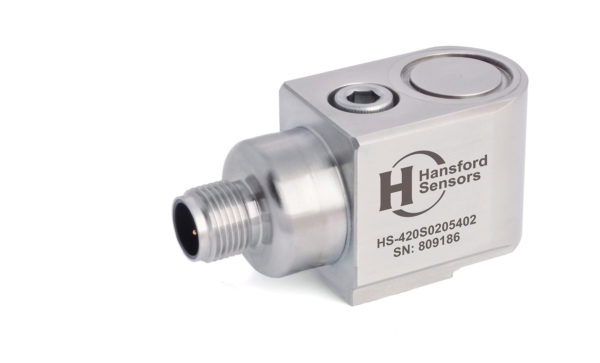

HS-420S – Seitenausgang – 4 Pin M12 4-20mA Ausgang Beschleunigungssensor
4-20mA velocity output via M12 Connector
Key Features
- For use with PLC/DCS systems
- Side entry for easy access
- Customisable features
- Compression Crystal Construction
Industries
Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical
Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment
How does request a quote work?
On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.
Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.
We are here to help!
Have a question on this product? Get in touch with our expert team.
Additional information
| Betriebstemperaturbereich | -25 to 120ºC,-13 to 248°F |
|---|---|
| Versiegeln | IP67 |
| EMC | EN61326-1:2013 |
| Gehäuse Material | Stainless Steel |
| Sensorelement/Konstruktion | PZT/Shear |
| Gewicht | 185gms/ 6.5 oz (nominal) body only |
| Abgeschirmte Kabelbaugruppe | HS-AC010 – straight, HS-AC011 – right angle |
| Eingang oben/seitlich | Side Entry |
| Stecker/Kabeltyp | M12 Connector |
| Ausgabe | 4-20mA Velocity |
| Achse | Single (Standard) |
Datasheets
Metric DatasheetImperial DatasheetProduct documentation guides
HS-420-User-GuideStuds-fitting-instructionsAC VIBRATION SENSORS – TYPICAL SET-UP
AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)
AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
