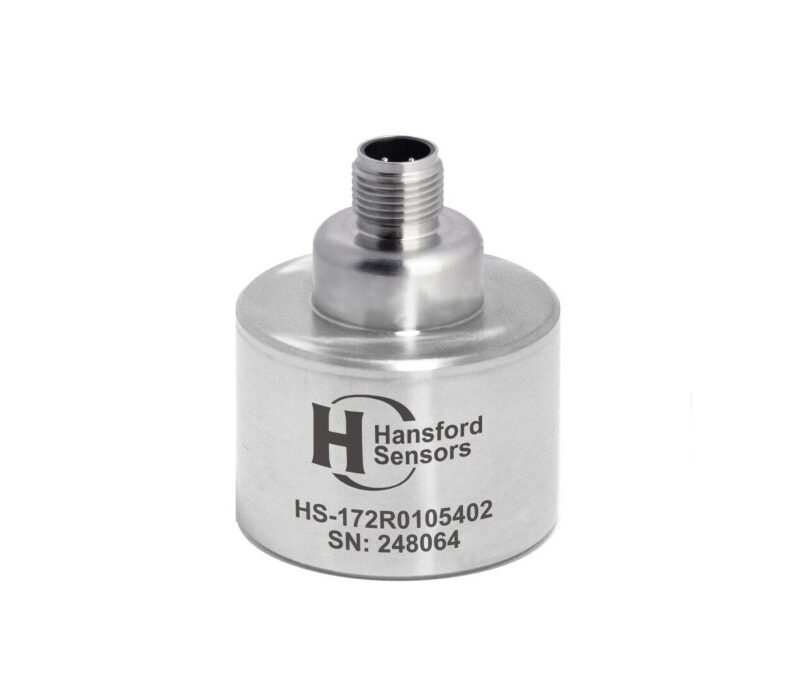

HS-172R – Oberer Ausgang – 4 Pin M12 Biaxialer Beschleunigungssensor

Zwei 100mV/g AC Ausgänge über M12 Stecker

HS 172R0105402 scaled

Key Features

  • Ausgang über zwei Achsen
  • Zur Verwendung mit Datensammler
  • Individuell anpassbare Merkmale
  • Scherkristall-Konstruktion

Branchen

Gebäudetechnik, Zellstoff und Papier, Bergbau, Metallindustrie, Versorgungsunternehmen, Automobilindustrie, Wasserwirtschaft, Pharmazie

Anwendungen

Ventilatoren, Motoren, Pumpen, Kompressoren, Zentrifugen, Förderanlagen, Air Handlers, Getriebe, Walzen, Trockner, Pressen, Kühlung, VAC, Spindeln, Werkzeugmaschinen, Prozessausrüstung

How does request a quote work?

On our site, browse the 100s of different Sensors, Junction boxes and accessories that you will need for vibration monitoring in your industrial application. Not 100% what you need? Contact us and we will be happy to help.

Once your quote is sent to us, we will be in contact with any recommendations or improvements to your quote, a price and delivery information.

We are here to help!

Have a question on this product? Get in touch with our expert team.

Enquire via contact page

Additional information

Betriebstemperaturbereich

-55 to 150°C, -67 to 300°F
Versiegeln

IP67
EMC

EN61326-1:2013
Gehäuse Material

Stainless Steel unless specified Aluminium
Sensorelement/Konstruktion

PZT/Shear
Gewicht

100gms / 3.5 oz (nominal) – Aluminium, 194gms / 6.8 oz. (nominal) – Stainless Steel
Abgeschirmte Kabelbaugruppe

HS-AC010 – straight
Eingang oben/seitlich

Top Entry
Gestaltung

Premium
Stecker/Kabeltyp

M12 Connector
Ausgabe

Single Output
Achse

Two (Biaxial)

Datasheets

Metric DatasheetImperial Datasheet

Product documentation guides

Studs-fitting-instructions

AC VIBRATION SENSORS – TYPICAL SET-UP

AC vibration monitoring systems – typical offline set-up using a standard 100mV/g accelerometer (other sensitivities available)

AC vibration monitoring systems – typical inaccessible offline set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)

AC vibration monitoring systems – typical online set-up using a number of 100mV/g AC accelerometers (other sensitivities available on request)
