Top or Side Entry Accelerometers?

Hansford Sensors have a wide range of top and side entry accelerometers available, to help decide which is more suitable for the application please see the below useful guide.

Fig 1
Fig 1

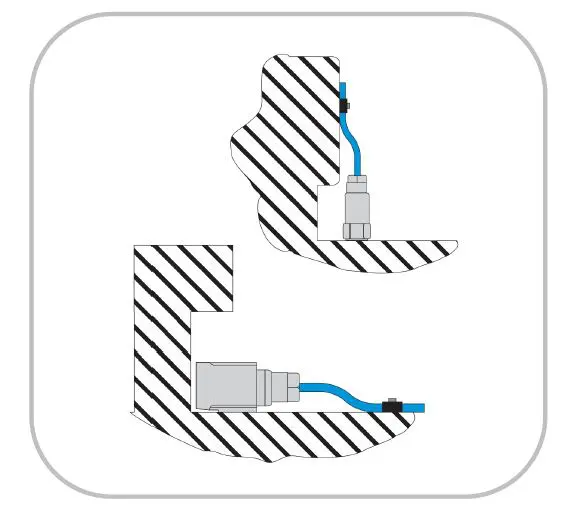

Fig.1 The decision on whether to have top exit or side exit is dictated by the location of the accelerometer, the local topography and how best to do cable management.

Fig 2
Fig 2

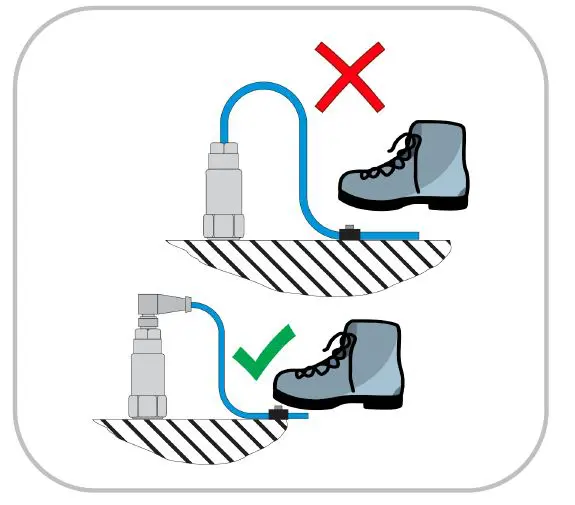

Fig.2 Cable management can be an issue with top entry sensors. Looped cables can present a trip hazard. This can be somewhat mitigated by using a right angled connector on the end of the mating cable.

Fig 3.jpg
Fig 3.jpg

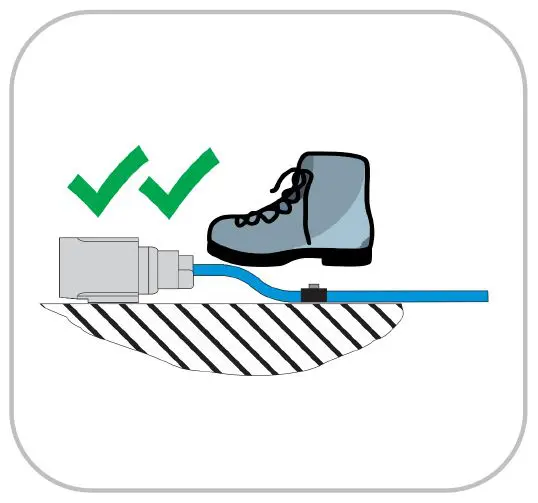

Fig.3 Side entry accelerometers reduces the risk of a trip hazard more.

Fig 4.jpg
Fig 4.jpg

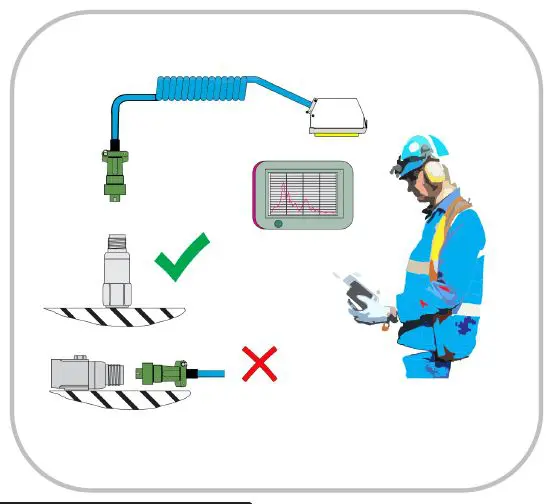

Fig.4 It is certainly a little easier to connect a mating cable to a top entry accelerometer than a mounted side entry accelerometer. This may be a significant issue for accelerometers that are repeatedly connected and disconnected as when accelerometers are permanently mounted waiting periodic connection to a data collector.

Fig 5.jpg
Fig 5.jpg

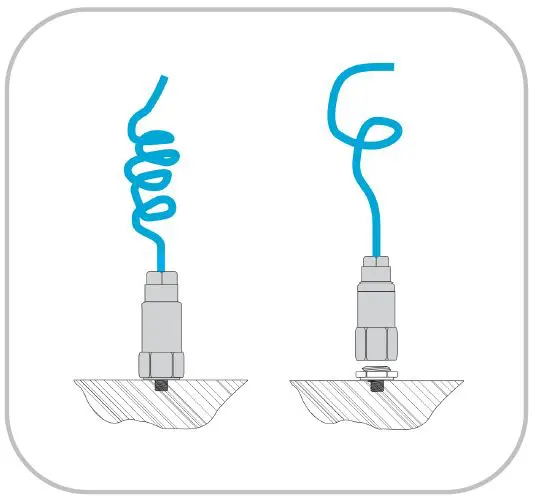

Fig.5 Top entry accelerometers with integral cable can twist its cables when being installed unless the whole integral cable is rotated. This can be somewhat mitigated using a quick fit connector that has full engagement with 3/4 of a turn. This reduces the amount of twist.

Fig 6.jpg
Fig 6.jpg

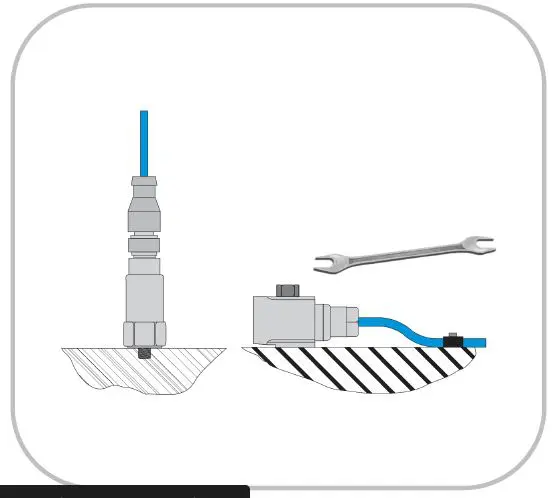

Fig.6 Having a top entry connector negates any twisting of the cable entirely. The side exit transducer has a through hole bolt so, to install the accelerometer, no rotation is required.

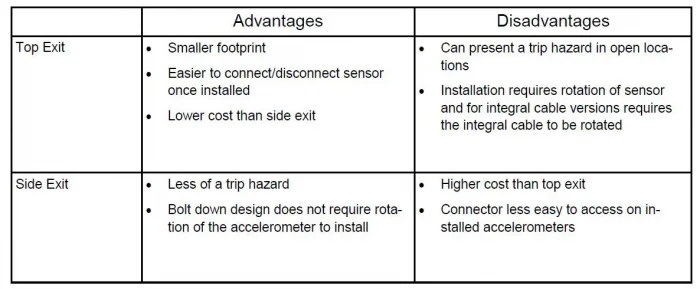

Fig 7
Fig 7

For any further questions, please do not hesitate to get in contact with us.
